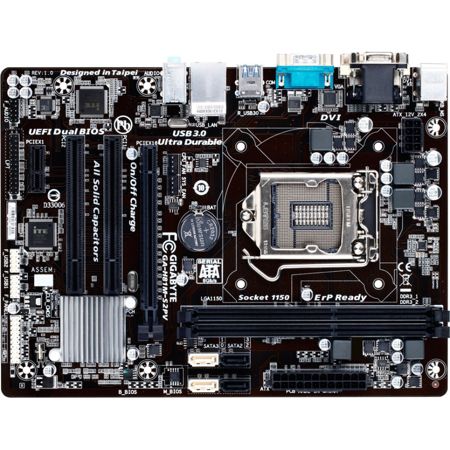

Gigabyte GA-H81M-S2PV Desktop Motherboard - Intel H81 Chipset - Socket H3 LGA-1150 - Retail Pack Item # 531961
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
531961
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Gigabyte Ultra Durable 4 Plus debuts on Gigabyte 8 Series motherboard, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.Gigabyte motherboard features Gigabyte DualBIOS, an exclusive technology from Gigabyte that protects arguably one of your PC's most crucial components, the BIOS. Gigabyte DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
Product Details
| Item # | 531961 |
| Manufacturer # | RP5360 |
| Number of SATA Interfaces | 4 |
| Number of PS/2 Ports | 2 |
| Hardware Features | DualBIOS, Q-Flash, All-Solid Capacitor motherboard Design, On/Off Charge, GIGABYTE LAN Optimizer, ESD Protection, Ultra Durable 4 Plus |
| Power Supply Supported | ATX12V |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz |
| Certifications & Standards | ACPI 2.0a; CE; FCC; BSMI |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| Number of Network (RJ-45) Ports | 1 |
| Number of DVI Outputs | 1 |
| BIOS Type | AMI |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x parallel - header |
| Graphics Controller Manufacturer | Intel |
| Onboard Parallel Header | Yes |
| Audio Line In | Yes |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices ¦ SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Number of PCI Express x16 Slots | 1 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 2 |
| Graphics Memory Accessibility | Shared |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz |
| VGA | Yes |
| Max Processors Qty | 1 |
| brand name | Gigabyte |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Audio Channels | 7.1 |
| Number of USB 2.0 Ports | 2 |
| Package Type | Retail |
| PS/2 Port | Yes |
| DVI | Yes |
| Memory Form Factor | DIMM |
| Processor Socket | LGA1150 Socket |
| Sound Controller Manufacturer | Realtek |
| Chipset Model | H81 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 2.0 |
| Number of PCI Slots | 2 |
| Total Number of Onboard USB Ports | 4 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| height | 3 in. |
| Total Number of USB Ports | 4 |
| Serial Port | Yes |
| Number of PCI Express x1 Slots | 1 |
| Onboard Audio Header | Yes |
| width | 9.6 in |
| package contents | Ultra Durable 4 Plus GA-H81M-S2PV (rev. 1.0) Desktop Motherboard; Bundle Software |
| Number of Memory Slots | 2 |
| Sound Controller Model | ALC887 |
| depth | 7.1 in |
| Product Name | Ultra Durable 4 Plus GA-H81M-S2PV (rev. 1.0) Desktop Motherboard |
| Audio Codec | Realtek ALC887 |
| manufacturer | GIGABYTE Technology, Inc |
| Audio Line Out | Yes |
| Max Size | 16 GB |
| Maximum Memory | 16 GB |
| Supported RAM Integrity Check | Non-ECC |
| controller type | Serial ATA/600; Serial ATA/300 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Graphics Memory Technology | DDR3 SDRAM |
| Number of Total Expansion Slots | 4 |
| Chipset Manufacturer | Intel |
| Graphics Controller Memory | 1 GB |
| Memory Technology | DDR3 SDRAM |
| form factor | Micro ATX |
| warranty length | 3-year limited |
| model name | GA-H81M-S2PV |
| Show More ▾ |
